README.md

Project thhor_crs version v01

Six layer rigid PCB, 6mil/8mil rules, 0.3mm vias, 8mil annular

  • Size: 60x80 mm²
  • Thickness: 1.6 mm.
  • With soldermask, no silk.
  • Surface finish HAL.

Copper layer order:

  • thhor_crs.top.gbr top side copper
  • thhor_crs.signal.gbr inner routing
  • thhor_crs.grounds.gbr power return planes
  • thhor_crs.power.gbr power planes
  • thhor_crs.ground.gbr chassis/analog ground
  • thhor_crs.bottom.gbr back side copper

Mechanical layers

  • thhor_crs.plated-drill.cnc drill file
  • thhor_crs.outline.gbr board outline
  • thhor_crs.topmask.gbr soldermask top
  • thhor_crs.bottommask.gbr soldermask bottom

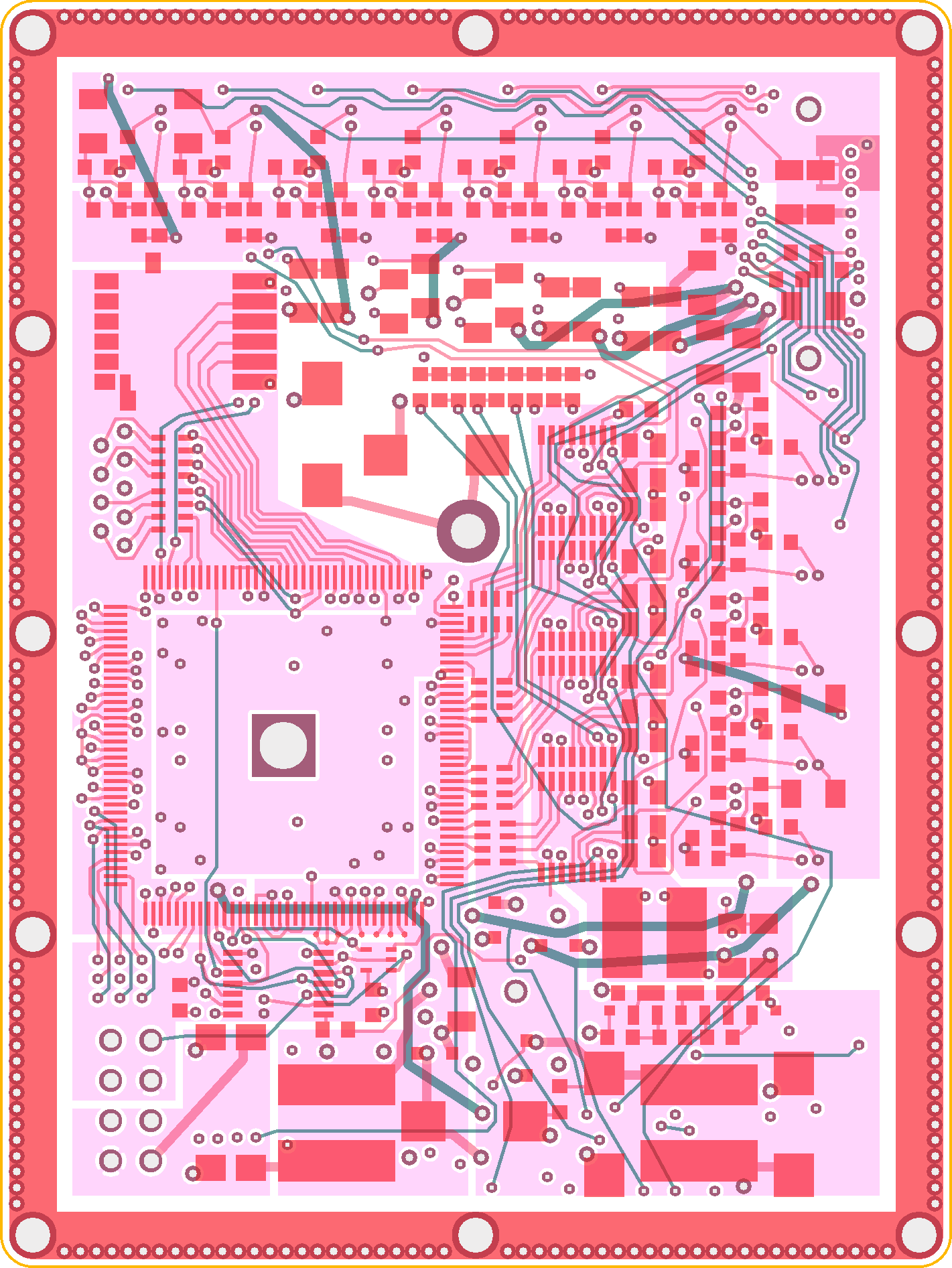

Pretty picture

gerbv export
