Cosmic Ray Sensor for THHΘR
300 commits 3 branches 0 tags 6.7 MiB
  • Python 39%
  • C 27.3%
  • GLSL 17.7%
  • Verilog 6.1%
  • Tcl 3.7%
  • Other 6.2%
Find a file
Exact
Stephan I. Böttcher ea8695b324 config: add dorn configuration pointer
2026-05-13 14:14:04 +02:00
fp thhor_csa: snapshot 2026-05-04 12:05:07 +02:00
fpga fpga spi_slave: longer sclk timeout 2026-03-25 20:20:07 +01:00
gerber add bilobe dims to dxf 2026-03-19 13:53:23 +01:00
sensor merged the src subtree from turbo_dose 2026-03-06 15:26:54 +01:00
src config: add dorn configuration pointer 2026-05-13 14:14:04 +02:00
sym thhor_csa: snapshot 2026-05-04 12:05:07 +02:00
.gitignore thhor_csa: snapshot 2026-05-04 12:05:07 +02:00
.gitmodules irena-arm is not usefull 2026-03-25 20:43:22 +01:00
biashk_pos.sch layout sepic and Vbias 2025-12-17 20:51:44 +01:00
CSA-Beau-sk.sch csa: move R5 to toplevel 2026-05-04 22:46:26 +02:00
dorn.sch shaper layout from leia 2025-12-20 05:02:39 +01:00
fix-netlist.sh layout sepic and Vbias 2025-12-17 20:51:44 +01:00
FSH-PZO.sch FSH: 2.7µs gain ×1 and ×15 configuration 2026-03-25 07:37:22 +01:00
gafrc THHΘR Cosmic Ray Sensor 2025-12-16 19:11:12 +01:00
IMG_20260324_100529_131-1200.jpg Transformer Image 2026-03-24 22:14:06 +01:00
LDO+1.sch footprints 2025-12-17 13:43:23 +01:00
LDO-1.sch layout sepic and Vbias 2025-12-17 20:51:44 +01:00
make-fp.py FPGA placed, two sides connected 2025-12-18 03:52:01 +01:00
README.md preamp board image 2026-05-04 23:20:17 +02:00
sepic.sch layout sepic and Vbias 2025-12-17 20:51:44 +01:00
thhor_crs-topbot.png update layout image, top and bot in one 2026-03-25 08:08:21 +01:00
thhor_crs.net pcb: fix XO53 oscillator enable pin 2026-03-25 20:10:26 +01:00
thhor_crs.pcb thhor_csa: extended board frame 2026-05-05 18:59:16 +02:00
thhor_crs.proj sub schematics 2025-12-16 21:12:07 +01:00
thhor_crs.sch HK: bring Vcc into ADC range, R50=15kΩ 2026-03-27 17:53:02 +01:00
thhor_csa-topbot.png thhor_csa: layput image 2026-05-11 10:56:41 +02:00
thhor_csa.net thhor_csa: fix mirrored channel order 2026-05-06 22:59:12 +02:00
thhor_csa.pcb thhor_csa: fix mirrored channel order 2026-05-06 22:59:12 +02:00
thhor_csa.proj thhor_csa: snapshot 2026-05-04 12:05:07 +02:00
thhor_csa.sch thhor_csa: fix mirrored channel order 2026-05-06 22:59:12 +02:00

README.md

THHΘR Cosmic Ray Sensor

Sensor

CHAOS Jr: HET BGO and 2× HETB.

  • BGO: 2 photodiodes × 2 gains = 4 channels
  • HETB: 2 detector × 2 segments × 2 gains = 8 channels

Electronics

  • single 5…20V power supply
  • 37 pin Omnetics Bilobe connector to the preamps board, A28200-037
  • detector bias voltage, positive or negative
  • 12 channel DORN readout, dual gain (with six preamps)
  • with Beau-SK type preamps
  • 10LC25 FPGA
  • ATtiny824-XF
  • AT45B161E for FPGA bitfile and data
  • 3.3V UART (optional RS485 half duplex) ifc to OBC
  • optional HSS serial ifc/spacewire.
  • optional MS5534 pressure sensor for balloon missions Layout

Transformer

  • 4 turns, thick, Vcore, 1.25V, directly regulated.
  • 12 turns, thick, primary.
  • 12 turns, medium, SEPIC, 4.5V digital, LDO regulators Vpll=2.5V, Vio=3.3V, Vadc=3.3V.
  • 19 turns, medium, +7.5V, LDO regulators +5V shaper, preamps, fets.
  • 19 turns, medium, -7.5V, LDO regulators -5V shaper, preamps.
  • 19 turns, thin, Vbias cascade.

Transformer

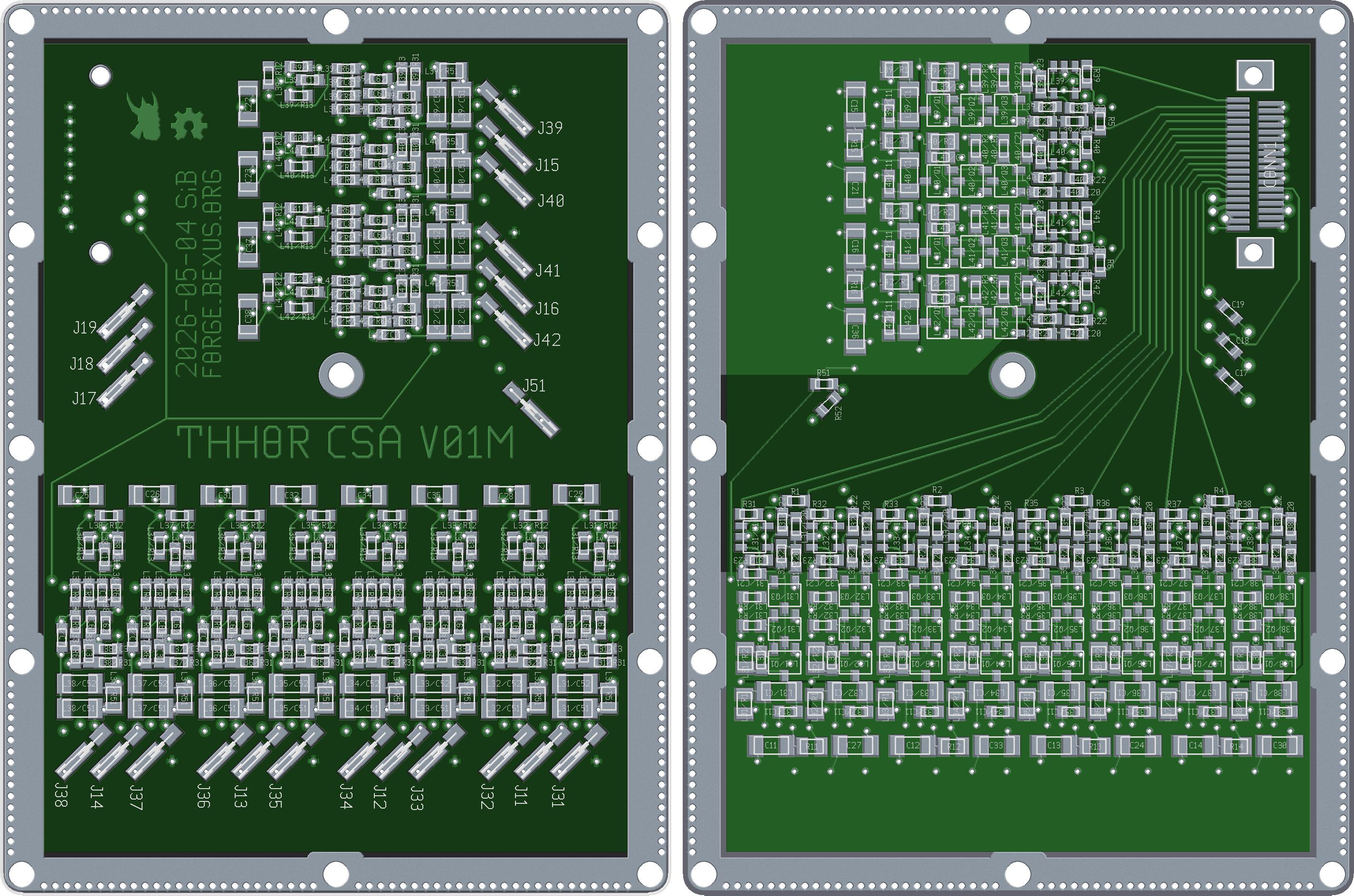

Charge Sensitive Amplifier

Layout
