Project thhor_csa version v01
Six layer rigid PCB, 6mil/8mil rules, 0.3mm vias, 8mil annular
- Size: 60x80 mm²
- Thickness: 1.6 mm.
- With soldermask, no silk.
- Surface finish HAL.
Copper layer order:
- thhor_csa.top.gbr top side copper
- thhor_csa.ground.gbr chassis/analog ground
- thhor_csa.vcc.gbr power Vcc plane
- thhor_csa.vss.gbr power Vss plane
- thhor_csa.vfet.gbr power Vfet plane
- thhor_csa.bottom.gbr back side copper
Mechanical layers
- thhor_csa.plated-drill.cnc drill file
- thhor_csa.outline.gbr board outline
- thhor_csa.topmask.gbr soldermask top
- thhor_csa.bottommask.gbr soldermask bottom

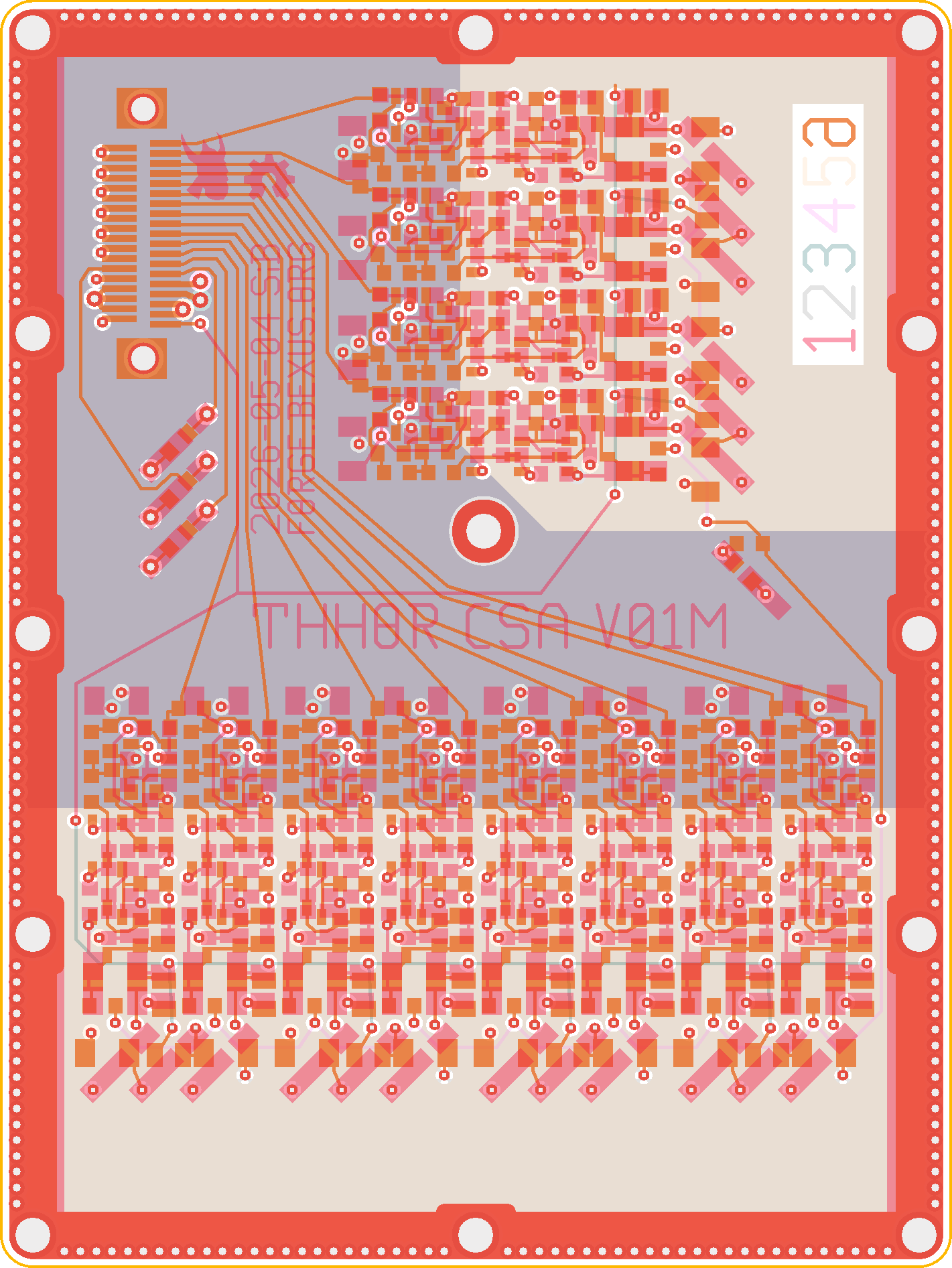

Pretty picture
